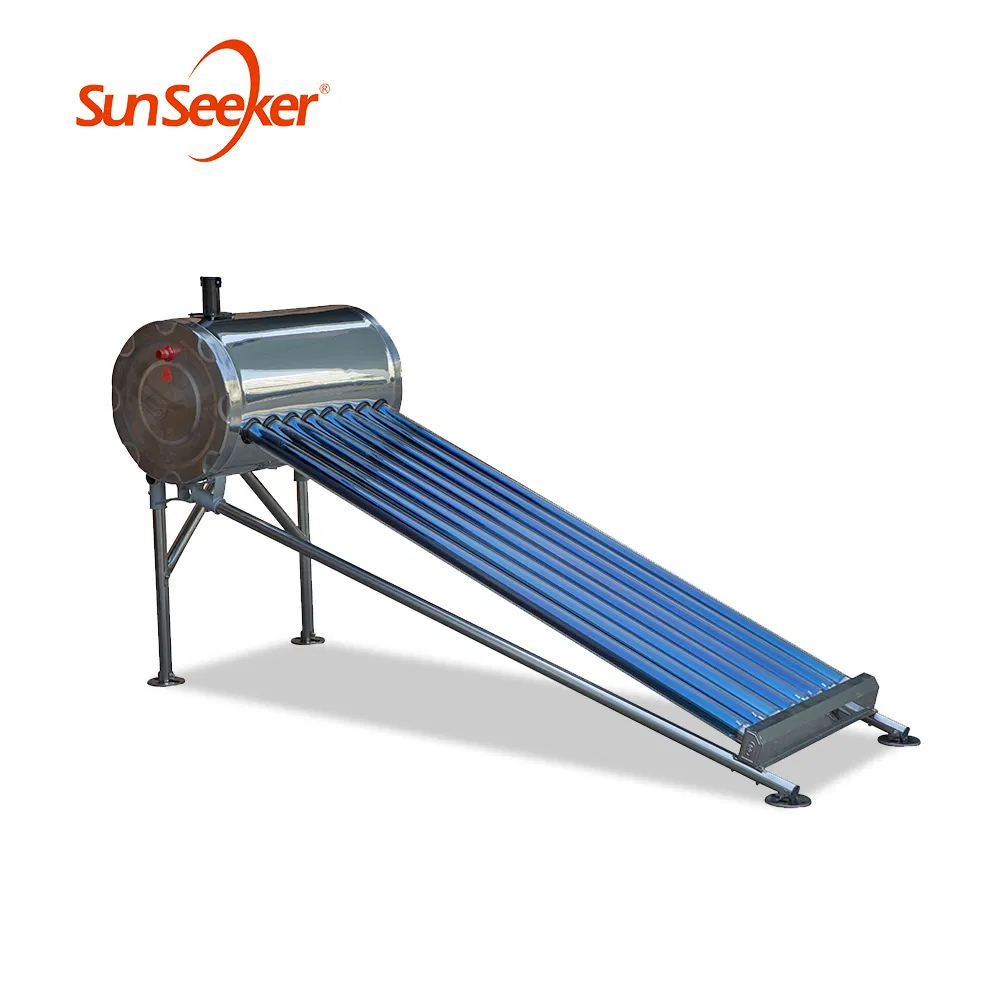

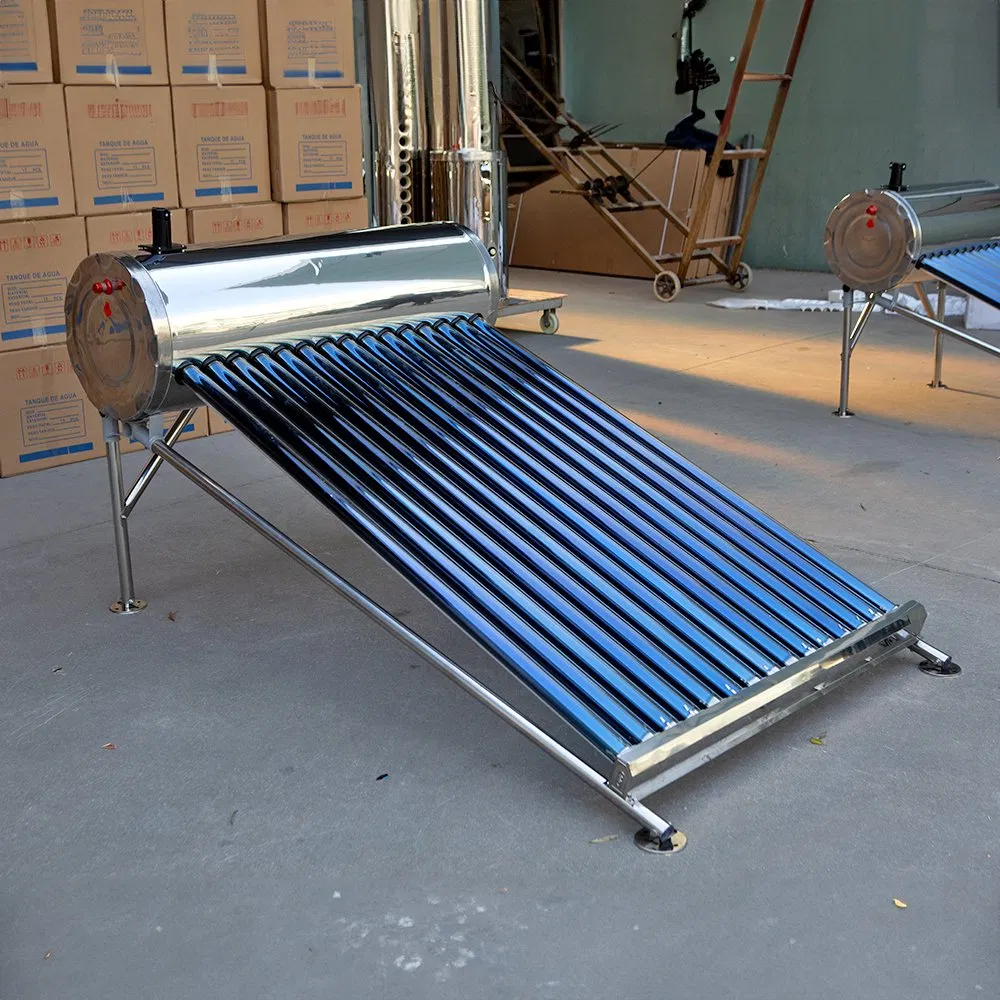

Zy-1na Series 80L High-Efficiency Compact Pressure Free Solar Water Heater

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.:ZY-1NA-5808
Max. Capacity:>200L
Structure:Compact Type
Pressure:Pressurized
Interior Material:Stainless Steel
Collector:Glass Vacuum Tube
Inner Tank:SUS 304 0.31mm
Insulation:Polyurathane 50mm
Vacuum Tube:58mm/1800mm
Frame:Aluminum Steel 1.0mm
Application:Outdoor, Hotel, Household, Swimming Pool
Certification:CE, RoHS

Product Description

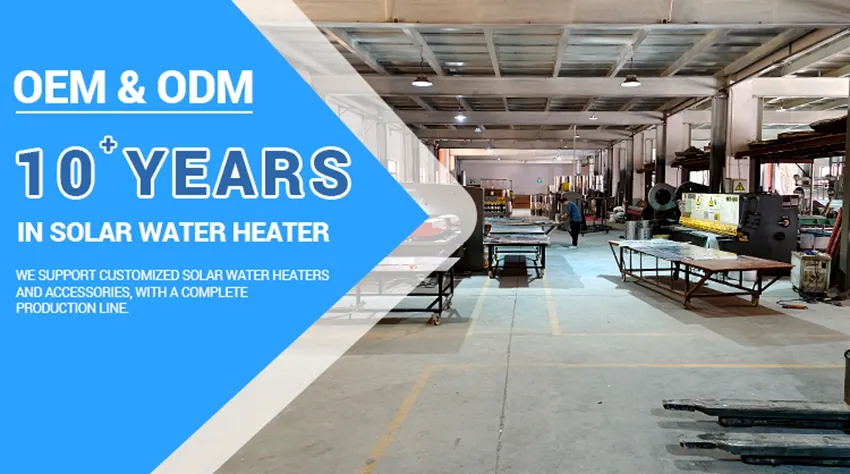

Solar Water Heater Overview
Solar Water Heater Detail
Technical Specifications
Material of inner tank0.31mm-0.5mm thickness, food grade SS304
Material of outer tank0.31mm thickness SS201
Insulating layer50mm thickness, 45kg/m3 high density polyurethane
Inlet and outlet holeMale G 1/2, 3/4

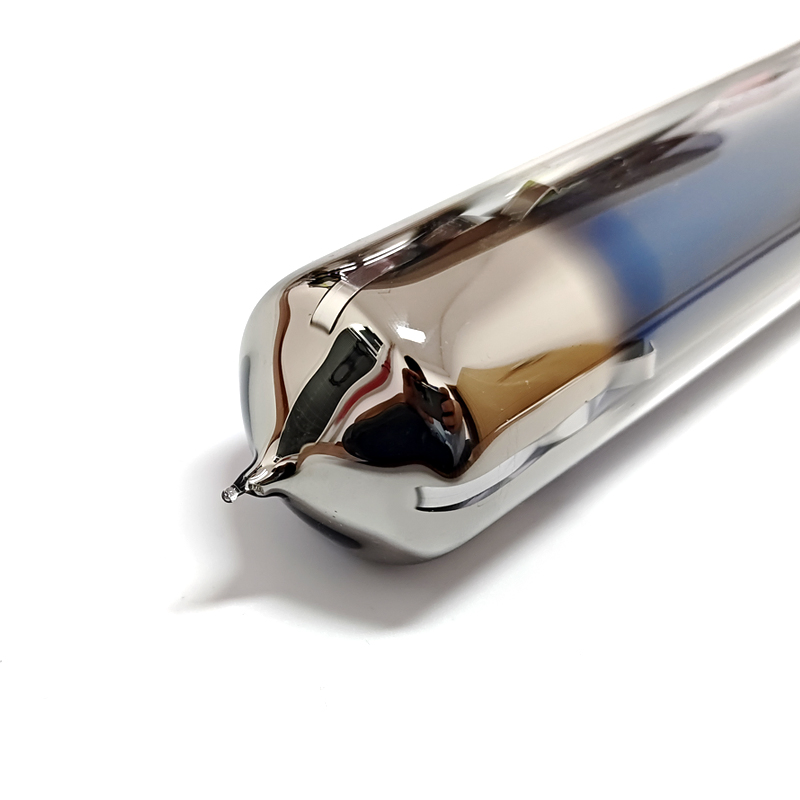

Solar collector tube3.3 Borosilicate glass with Cu-SS-ALN/ANL coating

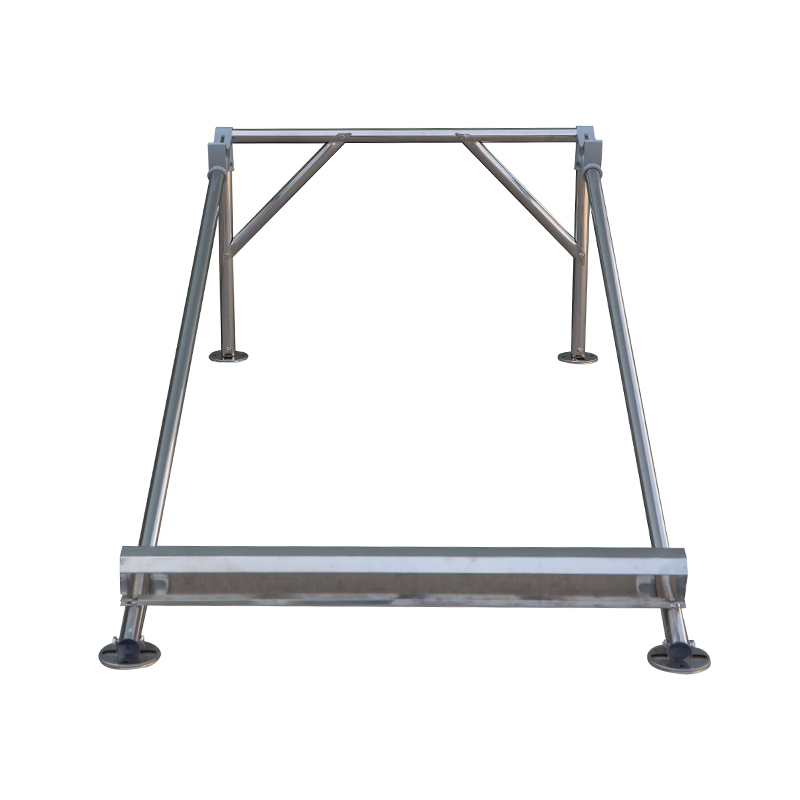

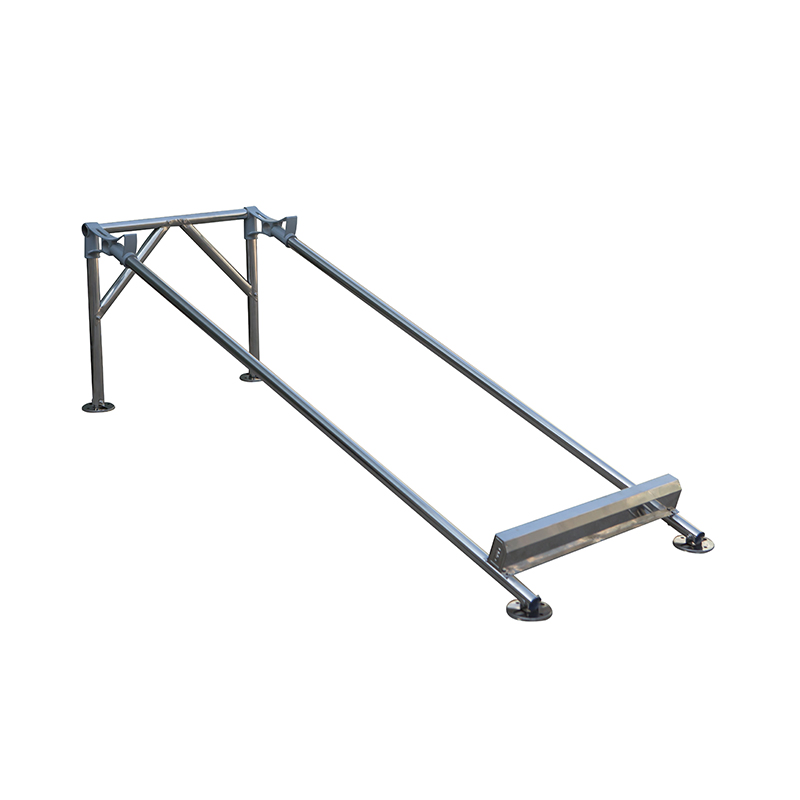

Bracket (frame)1.2mm/1.5mm galvanized steel
Tank capacityFrom 80L to 400L

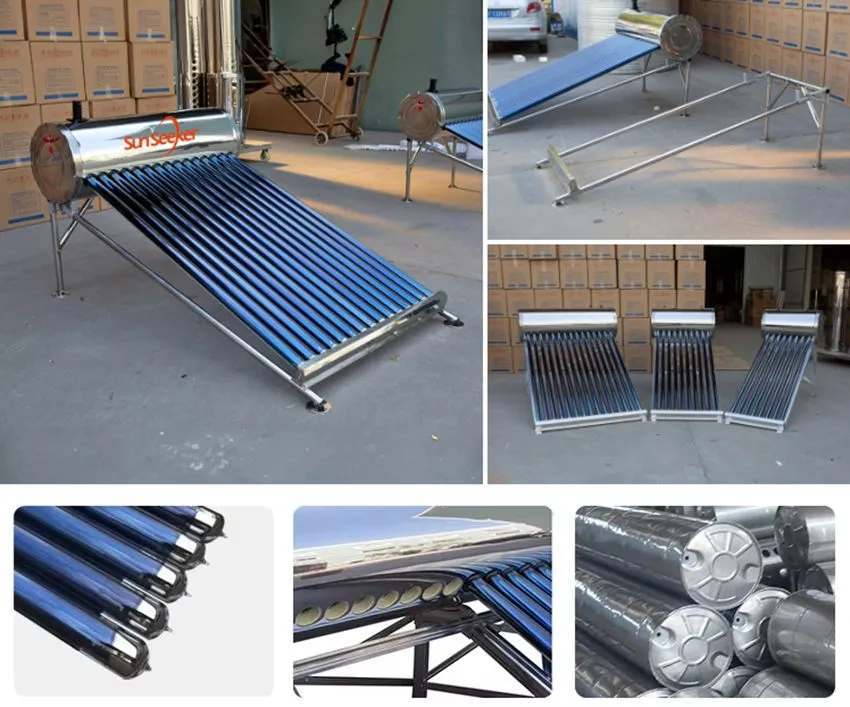

Product Introduction
📊

Model Comparison & Capacity

Item No. Tube QTY Tube Size Light Area Capacity Application
ZY-1NA-5808858x1800mm0.83 m²80L2 Persons
ZY-1NA-58101058x1800mm1.04 m²100L3 Persons
ZY-1NA-58121258x1800mm1.25 m²120L3-4 Persons
ZY-1NA-58151558x1800mm1.46 m²150L4 Persons
ZY-1NA-58202058x1800mm2.08 m²200L5-6 Persons
ZY-1NA-58303058x1800mm3.13 m²300L7 Persons
ZY-1NA-58404058x1800mm4.17 m²400L8 Persons

Our Professional Services

1
Packing: Standard export carton with foam or wooden box for samples.
2
Shipping: 7 days for samples, 7-10 days for 20/40ft containers.
3
Warranty: 5 years guarantee for the whole set solar water heater.
4
Supply Ability: 6000 sets per month.
5
Lifespan: Designed for more than 20 years of operation.

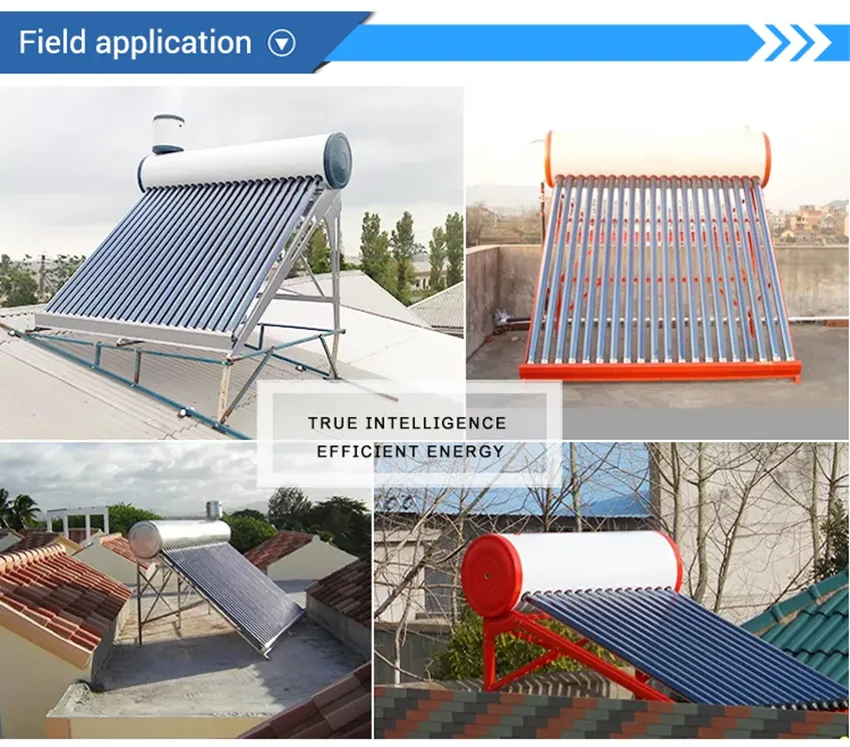

Production Detail 1
Production Detail 2
Production Detail 3
Factory View 1
Factory View 2
Factory View 3
?

Frequently Asked Questions

Q Are you a manufacturer or trading company?
A: We are a specialized manufacturer for solar water heaters.
Q Which payment methods do you accept?
A: We accept Paypal, Alipay, T/T, L/C, and D/P.
Q What is the Minimum Order Quantity (MOQ)?
A: For trial sample orders, 1 piece is available.
Q What is your delivery time?
A: Usually 7-10 working days after receipt of signed PI and down payment.
Q How are the products packaged?
A: Generally, we use standard packaging with plastic foam inside and durable cartons outside.
Q Do you offer additional accessories?
A: YES. We can offer accessories such as support frames, solar controllers, silicon seals, and rubber seals at competitive prices.
